Molded & Fabricated

Molded & Fabricated Fittings

Providing fittings for every type and size of pipe, in every configuration, for every application.

Gajeske boasts a sizeable on-hand inventory of injection-molded and fabricated fittings as well as an array of polyethylene adapters and backing rings, bolts, and all related accessories. In addition, we carry a large selection of electrofusion fittings, mechanical fittings, and everything needed for any gas distribution project.

Molded Fittings

Butt, Socket, and Saddle Fusion Fittings

PE4710/3408 fittings are engineered for use on HDPE Pipe
PE2708/2406 fittings are engineered for use on MDPE Pipe
Pressure rated for natural gas and potable water applications (based on fitting DR)
Can be joined by butt, socket, sidewall, or electrofusion
Can be used with all conventional fusion equipment
HDPE molded fittings are FM rated for liquid applications and manufactured to meet the same SDR as HDPE Pipe
All fittings are manufactured and rigorously tested to ensure optimal quality and reliability in the field.
Up to 12”

Elbows

Butt 90° Elbows
Butt 45° Elbows
Socket 90° Elbows

Tees

Butt Tees
Socket Tees
Socket Reducer Tees

Reducers

• Butt Reducers IPSxIPS
• Butt Reducers IPSxCTS
• Socket Reducers

Caps

• Butt End Caps
• Socket End Caps

Couplings

Socket Coupling

Branch and Service Saddles

Butt Outlet Round Base Branch Saddles
Butt and/or Socket Outlet Rectangle Base Branch Saddles

Purge Points and Caps

Butt Purge Caps
Socket Purge Caps
Butt Purge Points

Tapping Tees

Butt/Socket Molded Standard Gas Tapping Tee
High Volume Gas Tapping Tee
High Volume Gas Tapping Tee Rectangle O Ring Butt/Socket
Standard and High-Volume Water Tapping Tees
Tapping Tees with Stab Outlet
Tapping Tees with Excess Flow Valve

Adapters & Black Rings

MJ Adapters

PE4710/PE3408

2″ – 24″ IPS to IPS

2″ – 12″ DIPS to DIPS.

Beveled for Butterfly Valves available on request.
Standard 45° bevel unless otherwise specified by customer.
Gland Packs sold separately (includes gasket, ring and bolts).

MJ Accessory Kits

2” – 24” IPS/DIPS

Kits include: ductile iron gland ring, rubber gasket, T-bolts, and hex nuts.

14″–24″ IPS/DIPS

Kits include: rubber gasket, T-bolts, heavy flat washers & hex nuts. Does not include gland ring. Black carbon steel ring must be ordered separately.

Flange Adapters

PE3408/PE4710

3/4″ – 54″ IPS

3″ – 30″ DIPS

Beveled for Butterfly Valves available on request.
Standard 45° bevel unless otherwise specified by customer.

Backing Rings

¾” – 54″ IPS

3″ – 30″ DIPS

Standard: ASTM A536, GR 65/45/12.
Material: Convoluted Type, Ductile Iron, 150 lb. Drilling.
Finish: Red Oxide Primer.
Epoxy coated and stainless steel backing rings available.

Wall Anchors

PE3408/PE4710

2” – 12” IPS

DR 9, 11, and 17
Available in FM

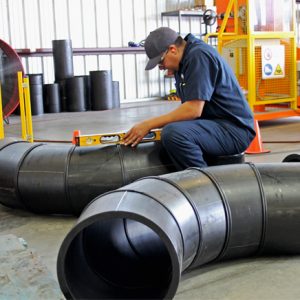

Fabricated Fittings

PE4710/3408

Up to 63”

For larger, more complex projects, fabricated fittings are another great option Gajeske offers. All fabricated fittings are produced from pressure-rated PE4710 Polyethylene resin and are available in standard HDPE or FM approved HDPE for liquid applications.

Elbows & Ells

Up to 63”

Now lower in cost, take less time to fabricate, and have tighter bends than old style fittings.

Tees

Up to 54”

More cost-effective at the 8”-10” range than molded tees

Reducing Tees

Branch Saddle Reducing Tees with up to 36” outlets
Line Tees with Reducer for outlets larger than 36”

Wyes

Up to 54”

45° Lateral Wyes
True Equal Wyes
Branch Saddle Reducing 45° Lateral Wyes

IPS Reinforced Fittings

Up to 36”

Fully Pressure Rated without ID flow restriction
Elbows, Tees, Reducing Tees, Wyes and Laterals available

Crosses

Up to 54”

Pressure rated at 80% of SDR

Sweep Bends

Up to 20” IPS

SDR 11 & 17

Please Note: Purchase of any pipe and/or fittings larger than 24” requires that either one of our certified technicians perform the fusion or that the customer’s choice of fusion technician be properly certified.

More sizes and/or DR’s may be available, please contact our sales representatives for more information.
