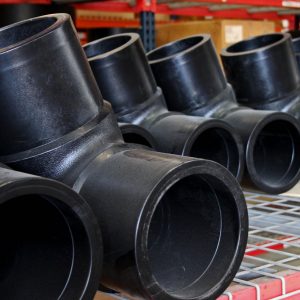

Fittings

Providing fittings for every type and size of pipe, in every configuration, for every application.

Gajeske boasts a sizeable on-hand inventory of injection-molded and fabricated fittings as well as an array of polyethylene adapters and backing rings, bolts, and all related accessories. In addition, we carry a large selection of electrofusion fittings, mechanical fittings, and everything needed for any gas distribution project.

Molded Fittings

Butt, Socket, and Saddle Fusion Fittings

PE4710/3408 & PE2708/2406

Up to 12”

PE4710/3408 fittings are engineered for use on HDPE Pipe
PE2708/2406 fittings are engineered for use on MDPE Pipe
Pressure rated for natural gas and potable water applications (based on fitting DR)
Can be joined by butt, socket, sidewall, or electrofusion
Can be used with all conventional fusion equipment
HDPE molded fittings are FM rated for liquid applications and manufactured to meet the same SDR as HDPE Pipe
All fittings are manufactured and rigorously tested to ensure optimal quality and reliability in the field.

Elbows

Butt 90° Elbows
Butt 45° Elbows
Socket 90° Elbows

Tees

Butt Tees
Socket Tees
Socket Reducer Tees

Reducers

• Butt Reducers IPSxIPS
• Butt Reducers IPSxCTS
• Socket Reducers

Caps

• Butt End Caps
• Socket End Caps

Couplings

Socket Coupling

Branch and Service Saddles

Butt Outlet Round Base Branch Saddles
Butt and/or Socket Outlet Rectangle Base Branch Saddles

Purge Points and Caps

Butt Purge Caps
Socket Purge Caps
Butt Purge Points

Tapping Tees

Butt/Socket Molded Standard Gas Tapping Tee
High Volume Gas Tapping Tee
High Volume Gas Tapping Tee Rectangle O Ring Butt/Socket
Standard and High-Volume Water Tapping Tees
Tapping Tees with Stab Outlet
Tapping Tees with Excess Flow Valve

Adapters & Backing Rings

MJ Adapters

PE4710/PE3408

2″ – 24″ IPS to IPS

2″ – 12″ DIPS to DIPS.

Beveled for Butterfly Valves available on request.
Standard 45° bevel unless otherwise specified by customer.
Gland Packs sold separately (includes gasket, ring and bolts).

MJ Accessory Kits

2” – 24” IPS/DIPS

Kits include: ductile iron gland ring, rubber gasket, T-bolts, and hex nuts.

14″–24″ IPS/DIPS

Kits include: rubber gasket, T-bolts, heavy flat washers & hex nuts. Does not include gland ring. Black carbon steel ring must be ordered separately.

Flange Adapters

PE3408/PE4710

3/4″ – 54″ IPS

3″ – 30″ DIPS

Beveled for Butterfly Valves available on request.
Standard 45° bevel unless otherwise specified by customer.

Backing Rings

¾” – 54″ IPS

3″ – 30″ DIPS

Standard: ASTM A536, GR 65/45/12.
Material: Convoluted Type, Ductile Iron, 150 lb. Drilling.
Finish: Red Oxide Primer.
Epoxy coated and stainless steel backing rings available.

Wall Anchors

PE3408/PE4710

2” – 12” IPS

DR 9, 11, and 17
Available in FM

Fabricated Fittings

PE4710/3408

Up to 63”

For larger, more complex projects, fabricated fittings are another great option Gajeske offers. All fabricated fittings are produced from pressure-rated PE4710 Polyethylene resin and are available in standard HDPE or FM approved HDPE for liquid applications.

Elbows & Ells

Up to 63”

Now lower in cost, take less time to fabricate, and have tighter bends than old style fittings.

Tees

Up to 54”

More cost-effective at the 8”-10” range than molded tees

Reducing Tees

Branch Saddle Reducing Tees with up to 36” outlets
Line Tees with Reducer for outlets larger than 36”

Wyes

Up to 54”

45° Lateral Wyes
True Equal Wyes
Branch Saddle Reducing 45° Lateral Wyes

IPS Reinforced Fittings

Up to 36”

Fully Pressure Rated without ID flow restriction
Elbows, Tees, Reducing Tees, Wyes and Laterals available

Crosses

Up to 54”

Pressure rated at 80% of SDR

Sweep Bends

Up to 20” IPS

SDR 11 & 17

Please Note: Purchase of any pipe and/or fittings larger than 24” requires that either one of our certified technicians perform the fusion or that the customer’s choice of fusion technician be properly certified.

Fittings for Gas Distribution

Molded Fittings

Molded Fittings for Gas Distribution range in size from ½” – 10” for butt, socket, and sidewall fusion processes.

Available in HDPE and MDPE.
PE4710/3408 HDPE is solid black in color (with a yellow stripe to indicate natural gas) and is an excellent option for high-pressure gas applications.
PE2708/2406 MDPE is solid yellow in color and is the material of choice for the Gas Distribution market.

Elbows

Butt 90° Elbows
Butt 45° Elbows
Socket 90° Elbows

Tees

Butt Tees
Socket Tees
Socket Reducer Tees

Reducers

• Butt Reducers IPSxIPS
• Butt Reducers IPSxCTS
• Socket Reducers

Caps

• Butt End Caps
• Socket End Caps

Couplings

Socket Coupling

Branch and Service Saddles

Butt Outlet Round Base Branch Saddles
Butt and/or Socket Outlet Rectangle Base Branch Saddles

Purge Points and Caps

Butt Purge Caps
Socket Purge Caps
Butt Purge Points

Tapping Tees

Butt/Socket Molded Standard Gas Tapping Tee
High Volume Gas Tapping Tee
High Volume Gas Tapping Tee Rectangle O Ring Butt/Socket
Standard and High-Volume Water Tapping Tees
Tapping Tees with Stab Outlet
Tapping Tees with Excess Flow Valve

Mechanical Fittings

Compression Couplings

Sizes ¾” – 2″ IPS

Compression Male Adapters

MPT x CTS and MPT x IPS

Wide Variety of Dimensions Available

Compression Tees

Sizes ¾” – 2” IPS

Servi-Sert® Fittings (Service Head Adapters)

Threaded outlet sizes from 1/2″ CTS to 1-1/4″ IPS

PE sizes from 1/2″ CTS to 1-1/4″ IPS

Permasert® Fittings

½” CTS – 2” IPS

Configurations:

3-Way Reducing Tees
Blind-End Stubs and Caps
Mechanical Couplings
Reducing Couplings
Repair Couplings
Tees, Ells, Wyes, and Reducing Ells and Wyes
XL Large Diameter Mechanical Couplings (Poly x Poly)
XL Large Diameter Mechanical Couplings (Poly x Steel)

CopperSert™ Copper-to-PE Transition Couplings

PE4710/3408

Copper sizes from 1/4″ to 5/8″ O.D.

PE sizes from 1/2″ CTS to 1″ IPS

Configurations:

Couplings
Tees
Ells
Reducing Couplings

Con-Stab ID Seal® Mechanical Fittings

½” CTS – 2” IPS

Pressure rating 125 psi

Transition from PE to copper, PE to steel and PE to PVC.

Configurations:

Couplings
Tees
Elbows
End Caps
Reducers

Risers & Transitions

Anodeless Risers

Inlet PE pipe sizes 1/2″ CTS – 12″ IPS

Outlet steel size 1/2″ NPT – 12″ NPT

PE pigtail length from 6′ – 250′

Riser styles: Pre-bent (with or without extended length of PE pipe), straight (with or without fused pup), flexible, or steel x flex
Outlet options: threaded, beveled for welding, flanged, or by-pass outlets
Pipe coatings: fusion bonded with epoxy or polyester
Available with extended pig tails and valves

Configurations:

ASR Bypass
ASR Stub Ell
ASR w/ Valve
Compression Riser
Flanged Stub Riser

Transition Risers (with Anode)

PE2406/PE2708

Custom vertical dimensions 15″ – 52″

Custom horizontal dimensions 15″ – 40″

Inlet PE pipe 1/2″- 8″ IPS

Outlet steel size 1/2″ NPT – 8″ NPT

Compression Risers

Inlet PE pipe ½” CTS – 2” IPS

Outlet steel size ½” MPT – 2” MPT

Configurations:

Tees
Couplings
Male Adapters

Flex Risers

PE 4710/3408

Threaded Steel Outlet ¾” NPT – 2” IPS

PE Tubing ½” CTS – 2” IPS

PE 2707/2406

Threaded Steel Outlet ¾” – 4” NPT

PE Tubing ½” CTS – 4” IPS

Available with plain inlets and Permasert inlets.

Many custom options available, call for details.

Flange Transition

PE2708/2406

2” – 24”

Steel flange-end, epoxy-coated

Threaded External-Coated Transition

½” – 8”

PE4710/3408 and PE2708/2406

Steel threaded, epoxy-coated

Threaded Internal-Coated Transition

PE4710/3408

½” – 8”

Steel threaded, internally coated

Weld-End Transition

PE2708/2406 and PE3408 for Gas

½” – 8”

Steel weld-end, epoxy-coated

Electrofusion Fittings

Electrofusion Fittings are manufactured to include and integral identification resistor that is recognized by the corresponding processors and will automatically set the proper fusion parameters. All electrofusion fittings have an ISO compliant barcode label that enables the simple input of correct fusion heating and cooling times.

Elbows

E3408/PE4710
1″ IPS – 2″ IPS only. NOT AVAILABLE IN PE2406/PE2708.

Tees

½” CTS – 1½” IPS molded EF 90s & equal tees
3-4-6″ EF equal tees, 90s & 45s

Reducers

PE2406/PE2708
1″ CTS – 1 ¼” CTS.
¾” IPS – 6″ IPS.
(3″ IPS – 6″ IPS are kits).

PE3408/PE4710
1 ¼” CTS.
¾” IPS – 2″ IPS.

End Caps

PE2406/PE2708
½” CTS – 1 ¼” CTS.
1 ¼” IPS – 6″ IPS.

PE3408/PE4710
½” CTS – 1 ¼” CTS.
¾” IPS – 8″ IPS.

Couplings

PE2406/2708
½” CTS – 1 ¼” CTS
½” IPS – 8″ IPS
PE3408/ PE4710
½” CTS – 1 ¼” CTS
½” IPS – 12″ IPS
4″ DIPS – 12″ DIPS

Large Diameter Couplings

PE3408/ PE4710
14″ IPS – 26″ IPS
14″ DIPS – 24″ DIPS

Branch Saddles

1 1/4″ – 2″ Outlet & 2″ – 12″ Base
4″ Outlet With 4″ – 6″ Base
Full Pressure Branch Saddle – Top Load: Main Sizes: 8″ X 6″ – 48″ X 8″ IPS/DIPS.
Full Pressure Branch Saddles: Main Sizes: 8″ X 4″ IPS – 12″ X 8″ IPS.
Low Pressure Branch Saddle: Main Sizes: 8″ X 6″ – 48″ X 8″ IPS/DIPS.

Branch Unions

PE3408/PE4710
Main Sizes: Multi-Base

7″ – 10″ and 6″ Fixed Base

Outlet Sizes: 4″ IPS, 4″ Sch 80 or 4″ Cap.

High Volume Tapping Tees

PE2406/PE2708
Main Sizes: 2″ IPS – 12″ IPS.
Outlet Sizes: 1 ¼” IPS – 2″ IPS.

PE3408/PE4710
Main Sizes: 2″ IPS – 12″ IPS and
4″ DIPS – 12″ DIPS.
Outlet Sizes: 1 ¼” IPS – 2″ IPS.

Tapping Tees with Socket OR Butt Outlet

PE2406/PE2708
Main Sizes: 1 ¼” IPS – 10″ IPS.
Outlet Sizes: ½” CTS & IPS,
¾” IPS, 1″ IPS & CTS.

HVTT with Electrofusion Outlet

PE3408/PE4710

Main Sizes: 2” IPS – 12” IPS

And 4” Dips – 12” DIPS.

Outlet Sizes: 2” IPS.

Flex Restraints

PE3408/PE4710
Main Sizes: 6″– 63″.

Works on solid wall pipe 6″ IPS & larger.

Mechanical Fittings

Mechanical Fittings for Gas Applications

Compression Couplings

Sizes ¾” – 2″ IPS

Compression Male Adapters

MPT x CTS and MPT x IPS

Wide Variety of Dimensions Available

Compression Tees

Sizes ¾” – 2” IPS

Servi-Sert® Fittings (Service Head Adapters)

Threaded outlet sizes from 1/2″ CTS to 1-1/4″ IPS

PE sizes from 1/2″ CTS to 1-1/4″ IPS

Permasert® Fittings

½” CTS – 2” IPS

Configurations:

3-Way Reducing Tees
Blind-End Stubs and Caps
Mechanical Couplings
Reducing Couplings
Repair Couplings
Tees, Ells, Wyes, and Reducing Ells and Wyes
XL Large Diameter Mechanical Couplings (Poly x Poly)
XL Large Diameter Mechanical Couplings (Poly x Steel)

CopperSert™ Copper-to-PE Transition Couplings

PE4710/3408

Copper sizes from 1/4″ to 5/8″ O.D.

PE sizes from 1/2″ CTS to 1″ IPS

Configurations:

Couplings
Tees
Ells
Reducing Couplings

Con-Stab ID Seal® Mechanical Fittings

½” CTS – 2” IPS

Pressure rating 125 psi

Transition from PE to copper, PE to steel and PE to PVC.

Configurations:

Couplings
Tees
Elbows
End Caps
Reducers

Mechanical Fittings for Water & Wastewater Applications

Repair Clamps, Sleeves, and Couplings

Universal Clamp Couplings
Universal Clamp Coupling with Removeable Lug
All Stainless Steel Universal Clamp Couplings
Fabricated Lug Stainless Steel Repair Clamp
Heavy Duty All Stainless Steel Repair Clamp
Large Diameter and Non-Standard Contour Pipe Repair Sleeve
Steel Couplings
Ductile Iron Couplings
Optimum Range Couplings
Flanged Coupling Adapters

Service Saddles and Tapping Sleeves

Service Saddle with Double Stainless Steel Straps (3/4” thru 2-1/2” outlets, 2” – 24”)
Tapping Sleeves (6” size and larger, contact JCM for smaller sizes)
Tapping Sleeves with Mechanical Joint Outlet*
Stainless Steel Tapping Sleeve with Outlet Seal Gasket
Stainless Steel Tapping Sleeve with Mechanical Joint Outlet*
Fabricated Threaded Outlet Tapping Sleeve (1/2” – 4” Outlets)
Stainless Steel Threaded Outlet Tapping Sleeve

Compression Couplings

Compression Couplings from Victaulic®
• For Plain end HDPE Pipe – 2-8”/63-225mm
• For HDPE-to-Steel Pipe – 2-8” IPS HDPE to 2-8”/50-200mm IPS Grooved Steel and 63-225mm ISO HDPE to 2-8”/50-200mm ISO Grooved Steel, designed to provide a single transition from plain end HDPE pipe to grooved steel sized piping system components
• For Double Grooved HDPE Pipe – 8-36” IPS and 250-900mm ISO
All Victaulic® Couplings are designed for use with HDPE pipe from SDR 7 to 17 and meet or exceed the pressure rating of the HDPE pipe.

Tools & Accessories

Cathodic Protection Test Stations
Anodes
Pipeline Markers
Chart Recorders
Marker Balls
Half Cells
Gas Detectors
Gauges
Digital Multimeters

Adapters & Backing Rings

MJ Adapters

PE4710/PE3408

2″ – 24″ IPS to IPS

2″ – 12″ DIPS to DIPS.

Beveled for Butterfly Valves available on request.
Standard 45° bevel unless otherwise specified by customer.
Gland Packs sold separately (includes gasket, ring and bolts).

MJ Accessory Kits

2” – 24” IPS/DIPS

Kits include: ductile iron gland ring, rubber gasket, T-bolts, and hex nuts.

14″–24″ IPS/DIPS

Kits include: rubber gasket, T-bolts, heavy flat washers & hex nuts. Does not include gland ring. Black carbon steel ring must be ordered separately.

Flange Adapters

PE3408/PE4710

3/4″ – 54″ IPS

3″ – 30″ DIPS

Beveled for Butterfly Valves available on request.
Standard 45° bevel unless otherwise specified by customer.

Backing Rings

¾” – 54″ IPS

3″ – 30″ DIPS

Standard: ASTM A536, GR 65/45/12.
Material: Convoluted Type, Ductile Iron, 150 lb. Drilling.
Finish: Red Oxide Primer.
Epoxy coated and stainless steel backing rings available.

Wall Anchors

PE3408/PE4710

2” – 12” IPS

DR 9, 11, and 17
Available in FM

More sizes and/or DR’s may be available, please contact our sales representatives for more information.
